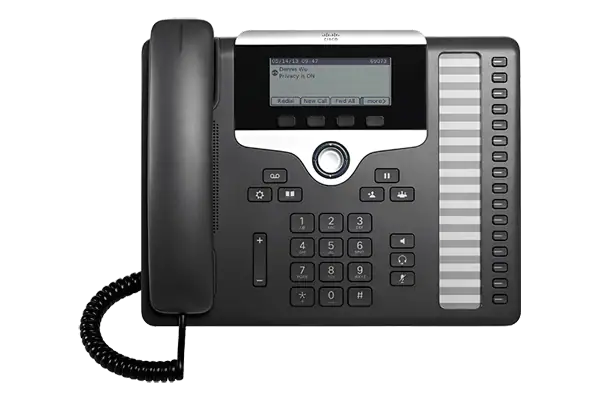

Cisco IP Phone 7861 Data Sheet

Easy-to-Use, Cost-Effective Voice Collaboration

Get simple, highly secure, and cost-effective voice communications for small to large businesses with the Cisco IP Phone 7861. The 7861 is an ideal endpoint to meet the active communications needs of managers and administrative staff. It offers deployment flexibility, with choice of Cisco on-premises, hosted, Webex Calling, and third-party call control offer flexible deployment options*.

Read Data Sheet

Features and Capabilities
Simplified, Improved Collaboration Experiences

Cisco IP Phone 7861 features include:

Sixteen line and programmable keys offers quick access to features and staff
High-resolution, graphical, grayscale display for easier viewing
Dedicated fixed keys** for more efficient communications
Built-in speakerphone enables hands-free communication
Wideband audio enhances clarity when using a handset, speaker or a headset

Easy, Cost-Effective Administration

Key features to reduce costs of administration include:

Flexible deployment options include Cisco on-premises, hosted, and Webex Calling
Cisco Expressway enables remote workers single sign-on access without a VPN client
Power over Ethernet (PoE) Class 1 and Cisco EnergyWise to help reduce energy costs
Integrated IEEE 10/100 switch to cut installation costs
Cisco Webex Phone OS consolidates administration with common software to both the IP Phone 7800 Series and IP Phone 8800 Series

*Telephony features may vary by vendor platform. Consult your Cisco representative for further details.

**Includes messaging, directory, speaker, and a two-way navigation button

Specifications at a Glance
Attribute Specification

Screen

396 x 162 pixel (3.5 in. / 89 mm)

Ethernet switch

10/100

Programmable line keys

16

Full duplex speakerphone

Yes (wideband)

Wideband audio

Standard*

PoE class

1

Replaceable bezel

Silver as an option
