Prices Collaboration Room Systems

€ -

€ -

€ -

Single 55", 70" and 85" integrated systems

Single and dual 55" screen integrated systems

Single or dual 70" screen integrated systems

Collaboration Devices — Room System

Collaboration Devices — Room System

Collaboration Devices — Room System

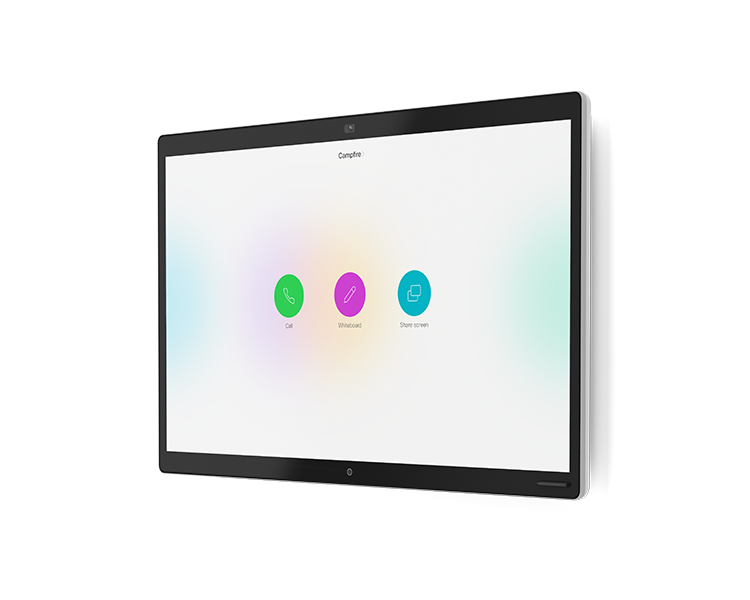

The Cisco Webex Board is an all-in-one system for rich team collaboration with a wireless presentation screen, a digital whiteboard, and a video conferencing device. Designed for rich collaboration, connecting physical and virtual meeting rooms to facilitate continuous workflow — before, during, and even after everyone has left the physical room. Webex Board can accommodate rooms of all sizes, from huddle to boardroom.

Supports:

• Cisco Webex Teams app pairing with a Cisco Webex device
• Register on prem or in the cloud
• Extend the feature set by adding third party web apps
• Ultrasonic pairing with any Webex app
• Continuous workflow through any Cisco Webex Teams app-enabled device and associated to a Cisco Webex Teams space

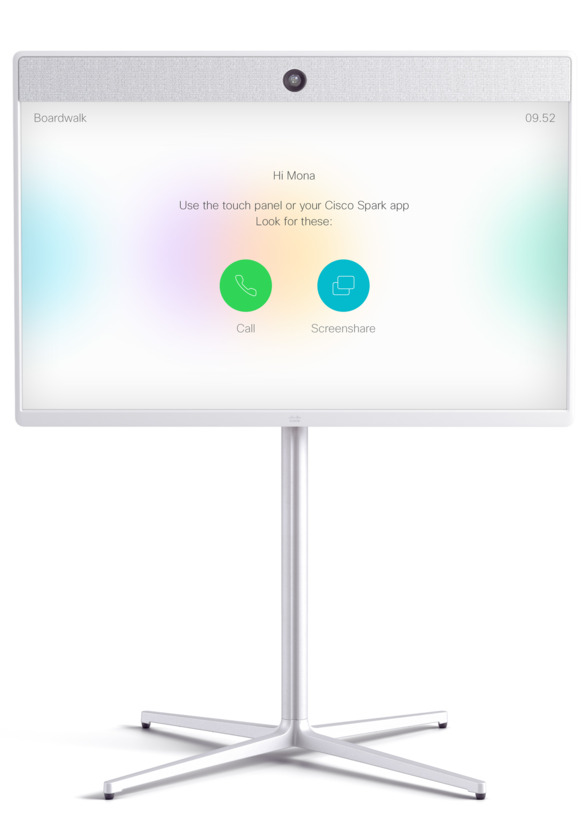

Cisco Webex Room 55 includes camera, codec, display, speaker system, and microphones integrated in a single device, and is optimized for rooms that seat up to seven people. It is an all-in-one system that’s easy to install, use, deploy, and manage. Room 55 has the Cisco Webex Room Kit and Room 55 Dual has the Room Kit Plus as their base technologies, bringing new capabilities such as speaker tracking, best overview, automatic wake-up, and people count to enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations.

Supports:

• Smart meetings: Powerful, integrated cameras deliver intelligent view capabilities, such as automatic framing and speaker tracking
• Smart presentations: Dual screens, dual content sources, wireless sharing, and 4K content make for great presentations
• Smart integrations: People count for usage metrics and resource allocation; tight integrations with screens for enhanced functionalities
• Registration flexibility on-premises or to Cisco Webex in the cloud

Cisco Webex Room 70 G2 is the flagship video collaboration product within the Cisco room systems portfolio. Room 70 G2 is available in two configurations: Room 70 G2 Single (70S G2) with one 70-inch LED screen and Room 70 G2 Dual (70D G2) with two 70-inch LED screens. Comprised of a powerful codec, a quad-camera, and 70-inch single or dual 4K display(s) with integrated speakers and microphones. The Room 70 G2 uses the Room Kit Pro as its base technology. Sophisticated cameras bring speaker-tracking and auto-framing capabilities to medium to large team rooms for up to 14 people. Room 70 G2 enables smarter meetings, smarter presentations, and smarter room and device integrations.

Supports:

• Smart meetings: Powerful, integrated cameras deliver intelligent view capabilities, such as automatic framing and speaker tracking
• Smart presentations: Supports up to three screens, dual content sources, wireless sharing
• Smart integrations: People count for usage metrics and resource allocation tight integrations with screens for enhanced functionalities
• Registration flexibility on premises or to Cisco Webex in the cloud

Webex Board 55S Edge LED LCD – 55-inch 4K, 350 nits, 16:9 • Resolution: Up to 3840 x 2160 (16:9) • Contrast ratio: Typical 4000:1 • Viewing angle: +/- 89° (all directions) • Response time: 5.5 ms

Webex Board 70S Edge LED LCD – 70-inch 4K, 300 nits, 16:9 • Resolution: Up to 1920 x 1080@30 (HD1080p) • Contrast ratio: Typical 4000:1 • Viewing angle: +/- 88° (all directions) • Response time: Typical 6 ms

Webex Board 85S Edge LED LCD – 70-inch 4K, 300 nits, 16:9 • Resolution: Up to 1920 x 1080@30 (HD1080p) • Contrast ratio: Typical 4000:1 • Viewing angle: +/- 88° (all directions) • Response time: Typical 6.5 ms

Webex Room 55 55-inch (1.4 m) LCD monitor, LED backlight • Resolution: 3840 x 2160 (16:9) • Contrast ratio: Typical 1100:1 • Viewing angle: +/- 178° • Response time: Typical 8 ms • Brightness: Typical 500 cd/m 2

Webex Room 55 Dual 2x 55-inch (1.4 m) LCD monitor, LED backlight • Resolution: 3840 x 2160 (16:9) • Contrast ratio: Typical 1100:1 • Viewing angle: +/- 178° • Response time: Typical 8 ms • Brightness: Typical 500 cd/m 2

Webex Room 70 G2 Single 70-inch TFT-LCD monitor, edge-lit LED • Resolution: 3840 x 2160 (16:9) • Contrast ratio: Typical 4000:1 • Viewing angle: - +/- 88° (typical) - +/- 70° (minimum) • Response time: Typical 6 ms • Brightness: Typical 230 cd/m 2

Webex Room 70 G2 Dual 2x 70-inch TFT-LCD monitor, edge-lit LED • Resolution: 3840 x 2160 (16:9) • Contrast ratio: Typical 4000:1 • Viewing angle: - +/- 88° (typical) - +/- 70° (minimum) • Response time: Typical 6 ms • Brightness: Typical l230 cd/m2

Fixed lens, infinite focus Resolution: 4Kp60 83° horizontal field of view, 55° vertical field of view Resolutions: 1080p60 and 720p60 f/2.8 aperture

Room 55 3x digital zoom UltraHD Camera with 5K sensor, 83° horizontal field of view, 51.5° vertical field of view Resolution: Up to 1080p60 f/2.0 aperture Auto-framing (audio + face detect)

Room 55 Dual 5x digital zoom (3 tele-lenses, each with 50° horizontal field of view) UltraHD Camera with 5K sensor 83° horizontal field of view, 51.5° vertical field of view Resolution: Up to 1080p60 f/2.0 aperture Auto-framing (audio + face detect)

UltraHD Camera with 5K sensor 5x digital zoom (3 tele-lenses each with 50° horizontal field of view), 83°horizontal field of view 51.5° vertical field of view Resolution: Up 1080p60 f/2.0 aperture Auto-framing (audio + face detect) Auto focus, brightness, and white balance Focus distance 1 m to infinity

Webex Board 55S: Up to 5 people

Webex Board 70S: Up to 7 people

Webex Board 85S: Up to 14 people

Room 55: Up to 7 people

Room 55 Dual: Up to 12 people

Room 70 G2 Dual: Up to 14 people

Up to 1080p60

Up to 1080p60

Up to 1080p60

H.264 H.265 H.263

H.264 H.265

H.264 H.265

Up to 60 fps

8Up to 60 fps

Up to 60 fps

1080p60 2160p30 4kp5

1080p30 4kp5

4kp5

Collaboration Endpoint Software Version 9.8.0 or later or Webex RoomOS

Room 55: Cisco Collaboration Endpoint Software Version 9.1.1 or later

Room 55 Dual: Cisco Collaboration Endpoint Software Version 9.4 or later Both: Webex RoomOS

Collaboration Endpoint Software Version 9.4 or later or Webex RoomOS

VCS: H.323 and SIP CUCM: SIP Cisco Webex: HTTP, REST APIs

VCS: H.323 and SIP CUCM: SIP Cisco Webex: HTTP, REST APIs

VCS: H.323 and SIP CUCM: SIP Cisco Webex: HTTP, REST APIs

Cisco Webex Pen G2 Cisco Touch 10

Cisco Touch 10

Cisco Touch 10

H.264: from 768 kbps to 6000 kbps Minimum bandwidth: • 720p30 from 768 kbps • 1080p30 from 1.72 mbps Maximum bandwidth: • Transmit: 4.3 mbps • Receive: 10 mbps

H.264: from 768 kbps to 6000 kbps

H.264: from 768 kbps to 6000 kbps

G.711 G.722 G.722.1 G.729 AAC-LD Opus

G.711 G.722 G.722.1 G.729 AAC-LD Opus

G.711 G.722 G.722.1 G.729 AAC-LD Opus

High-quality 20 kHz audio Acoustic echo cancellation Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization Microphone array with intelligent voice tracking capabilities

High-quality 20 kHz audio Prepared for subwoofer (line out) Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization

High-quality 20 kHz audio Eight separate acoustic echo cancellers Eight-port audio mixer Eight assignable equalizers Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization

Small to large meeting rooms

Medium- to large-sized rooms

Large rooms

Webex Board 55S: • Main unit: 32.1 x 50.5 x 1.9 in (814 x 1283 x 50 mm) • Wall mount kit: 10 x 54.5 x 2 in (253 x 1386 x 51 mm) • Wall stand kit: 30.2 x 48.5 x 4.2 in (768 x 1231 x 106 mm) • Floor stand kit: 41.9 x 77.7 x 5.2 in (1064 x 1974 x 132 mm) • Weight, main unit: 87.7 lb (39.8 kg)

Webex Board 70S: • Main unit: 40.7 x 64.1 x 2.4 in (1034 x 1627 x 61 mm) • Wall mount kit: 10.1 x 66 x 3.6 in (256 x 1675 x 92 mm) • Wall stand kit: 60 x 47 x 6.7 in (1524 x 1186 x 172 mm) • Floor stand kit: 60 x 47 x 6.7 in (1524 x 1186 x 172 mm) • Weight, main unit: 141.8 lb (64.3 kg)

Webex Board 85S: • Main unit: 48.1 x 77.4 x 3 in (1221 x 1966 x 76 mm) • Wall mount kit: 8.6 x 76.4 x 3.5 in (218 x 1940 x 89 mm) • Wall stand kit: 13.2 x 75.9 x 6.6 in (336 x 1928 x 168 mm) • Floor stand kit: 47.2 x 64.4 x 6.2 in (1200 x 1636 x 157 mm) • Weight, main unit: 220 lb (100 kg)

The Webex Board and the selected mounting option will be shipped in a consolidation pack on a pallet. The dimensions above describe each of the individual boxes within the consolidation packaging.

Room 55: • Floor stand: 62.7 x 49 x 30.5 in (1593 x 1245 x 774 mm) • Wall mount: 32.8 x 49.0 x 5.1 in (832 x 1245 x 130 mm) • Wheel base: 62.7 x 49.0 x 30.5 in (1651 x 1245 x 774 mm)

Room 55 with (all weight without packaging): • Floor stand: 83.8 lb (38 kg) • Wall mount: 68.3 lb (31 kg) • Wheel base: 85.1 lb (38.6 kg) • Main unit only: 66.1 lb (30 kg)

Room 55 Dual with floor stand: • Main unit: 99.1 x 68.2 x 36.3 in (2518 x 1731 x 920 mm) • Weight, monitor modules: 233.7 lb (106 kg) • Weight, floor stand: 66.1 lb (30 kg) • Weight: 337 lb (153 kg)

Room 55 Dual with wall mount: • Main unit: 99.1 x 42.2 x 5.9 in (2518 x 1071 x 150 mm) • Height: 42.2 in (1071 mm) • Depth: 5.9 in (150 mm) • Weight, monitor modules: 233.7 lb (106 kg) • Weight, wall mount: 79.4 lb (36 kg) • Weight: 351 lb (159 kg)

Room 70 G2: Floor stand: 62.83 x 75.59 x 36.22 in (1596 x 1920 x 1020 mm) (WxHxD) • Weight, monitor module: 196.21 lb (89 kg) • Weight, floor stand: 57.32 lb (26 kg) • Weight: 249.12 lb (113 kg) • Wall mount: 62.83 x 49.53 x 5.91 in (1596 x 1258 x 150 mm) • Weight, monitor module: 196.21 lb (89 kg) • Weight, wall mount: 57.32 lb (26 kg) • Weight: 253.53 lb (115 kg)

Room 70 G2 Dual with: • Floor stand: 124.76 x 75.59 x 36.22 in (3169 x 1920 x 920 mm) (WxHxD) • Weight, monitor module: 390.22 lb (177 kg) • Weight, floor stand: 77.16 lb (35 kg) • Weight: 471.79 lb (214 kg) • Wall mount: 124.76 x 49.53 x 5.91 in (3169 x 1258 x 150 mm) • Weight, monitor modules: 390.22 lb (177 kg) • Weight, wall mount: 88.18 lb (40 kg) • Weight: 485.02 lb (220 kg)

Webex Board 55S

Webex Board 70S

Webex Board 85S

Webex Room Room 55

Webex Room 55 Dual

Webex Room 70 G2
